IgniteNet MetroLinq-LW 60GHz Cloud Enabled PTP/PTMP w/ 5GHz Failover + 2GHz AP (each)

IgniteNet's MetroLinq 60-LW has a 60GHz range of up to 150m as well as built-in 5GHz failover, it can provide reliable high throughput in the harshest conditions. It also has an added advantage of being license-free in most markets, allowing ultra fast deployment, without the hassle of other frequency bands. The MetroLinq 60-LW also includes a third 2.4GHz radio that can be configured as a multi-tenant AP for applications ranging from hotspots to maintenance.

Product Features
• 1+Gbps Aggregate throughput; dynamically allocated (60GHz)
• Advanced 60GHz beam forming for easy alignment
• 600Mbps Aggregate throughput; dynamically allocated (5GHz)
• 300Mbps Aggregate throughput, dynamically allocated (2GHz)
• Management VLAN support and VLAN pass-through
• Supports Service Provider and Enterprise type networks
• Stand-alone or Cloud-controller operating modes
• Base Station mode and up to 32 endpoints (8 endpoints at launch)
• Link failover/backup (60GHz + 5GHz)
• 128bit AES Encryption (standard; 5GHz and 60GHz)
• SNMP Monitoring with Private MIB

Product Applications
• Fixed Wireless Access (broadband)
• 3G/4G Backhaul
• Metro WiFi
• Campus Interconnection
• Hybrid Fiber/Wireless Networks

MetroLinq-60-LW.pdf 95 kB
MetroLinq 60 LW Datasheet
Vistabeam_Case_study_final.pdf 3 MB
Case Study
MetroLinq-60-LW_QSG-R01_0213.pdf 864.2 kB
Quick Start Guide
HeliOS_UG-R03_.2017.05.12.pdf 1.1 MB
User Manual

Product Features
• (1) Gigabit Ethernet Port (PoE IN)
• (1) Gigabit Ethernet Port
• (1) SFP Port
• (1) Screw Terminal Block (Power IN)
• (1) USB 3.0 Port
• Dual flash image support
• LEDs: Power, Ethernet, Wireless, Health/Status
• Dimensions: 177 x 163 x 40mm (7 x 6.5 x 1.4")
• Power: 24V/1A passive Gigabit PoE
• Operating Temperature: -40 to 70°C
• Storage Temperature: -40 to 70°C
• Operating Humidity: 10 to 90% non-condensing
• Regulatory / Standards Compliance: FCC/IC, CE
• Range:
Up to 250m (LW to LW, location dependent)
Up to 250m (LW to Omni, location dependent)
Up to 900m (LW to 19cm, location dependent)
Up to 1.2km (LW to 35cm, location dependent)
• RF Performance (TX):
60GHz: 14dBm @ 1+Gbps
5GHz: 27dBm @ 6Mbps, 23dBm @ 866Mbps
2.4GHz: 27dBm @ 6Mbps, 23dBm @ 300Mbps
• RF Performance (RX):
60GHz: -74dBm @ MCS1; -60dBm @ MCS9
5GHz: -94dBm @ MSC0; -72dBm @ MCS15
2.4GHz: -94dBm @ MCS0; -72dBm @ MCS15

120 degrees beamforming antenna

The new beamforming sector antenna has a 120 degree area coverage, but during the communication with each client device 16 narrow beam steps of 10 degrees are used, which improves noise immunity and assures security of your links.

The new beamforming sector antenna has a 120-degree area coverage, but during the communication with each client device 16 narrow beam steps of 10 degrees are used, which improves noise immunity and assures security of your links.

Multi-gigabit capacity

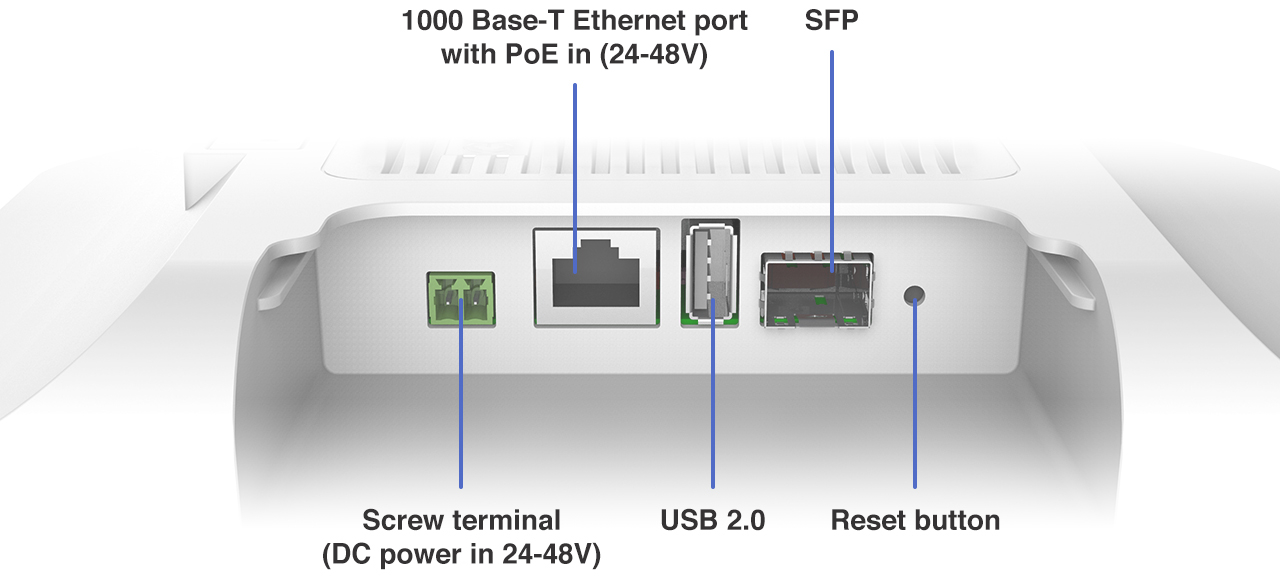

MetroLinq 60 LW has a Gigabit Ethernet port supporting PoE and also an SFP port for direct fiber connectivity.

Great base-station and perfect client device

MetroLinq 60 LW is perfect for establishing short range PTP and PTMP connections. The new beamforming antenna provides great coverage when it is used as a base station and in the client mode it simplifies the alignment as the same beamforming antenna on the remote side finds the best path to use.

The benefits of tri-band

MetroLinq 60 LW has three integrated radios making it an ideal device for building network backhaul and access using the same unit. 60GHz serves as the backhaul while the 5GHz radio can work as a failover or client access radio and 2.4GHz is dedicated for client access as well.

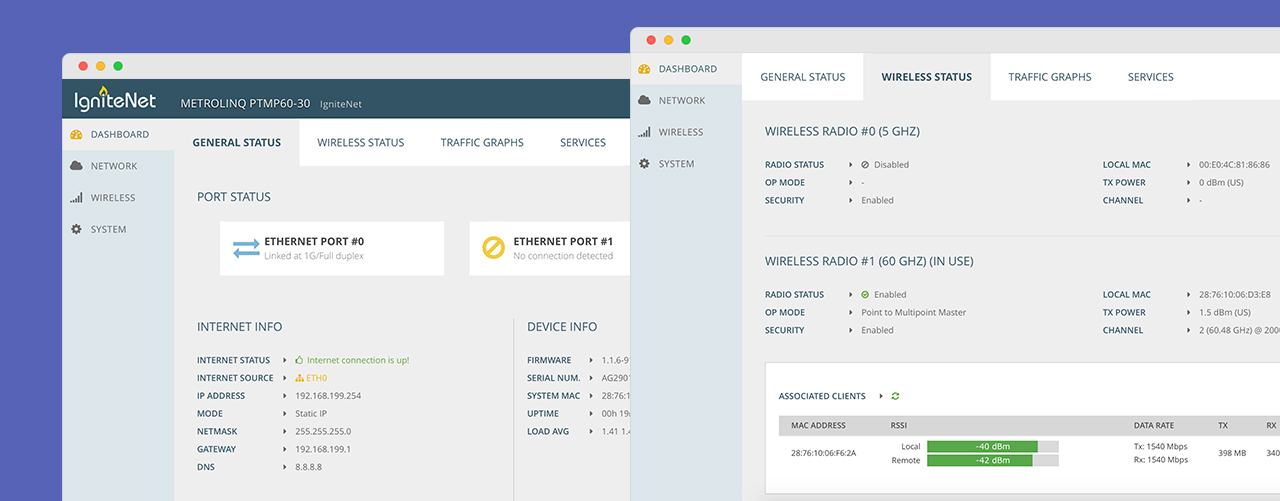

Powerful OS

The advanced operating system has a professional feature-set required to do ultra high speed point-to-point and point-to-multipoint communications. It includes 128 bit AES encryption for security, jumbo frame support, advanced 5 GHz failover capabilities and many more. Each base-station can be configured individually as well as centrally using our cloud based controller available at: https://cloud.ignitenet.com/welcome/login.

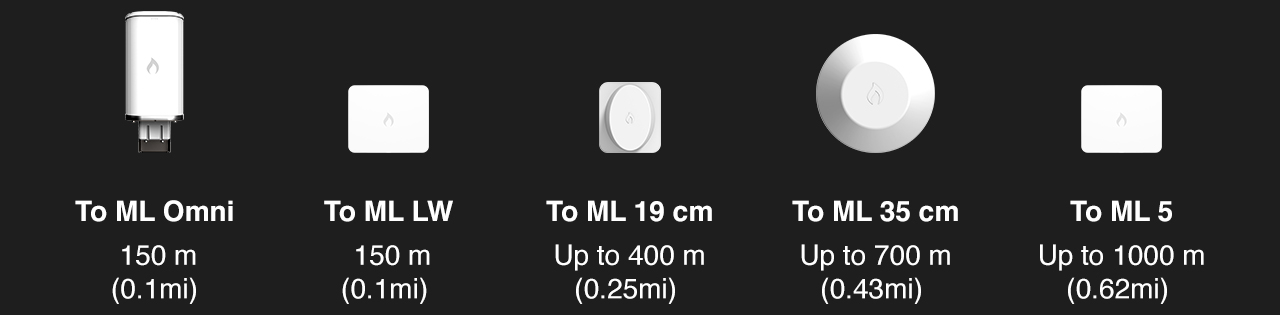

Multiple client options

Multiple client options with different sized integrated antennas are available to support different distances. Picture above illustrates average recommended distance to connect 60 GHz MetroLinq wireless clients
